We develop special solutions that are as unique as your requirements. Each project is one-of-a-kind and each machine is tailor-made: always efficient and target-oriented thanks to our years of experience and well-established modular concepts.
In-house developments ensure optimal performance
Our customers’ individual requirements have been transformed into smart, highly innovative products that are continually deployed. In this way, we expand our expertise in special machine engineering to include real best-practice solutions.

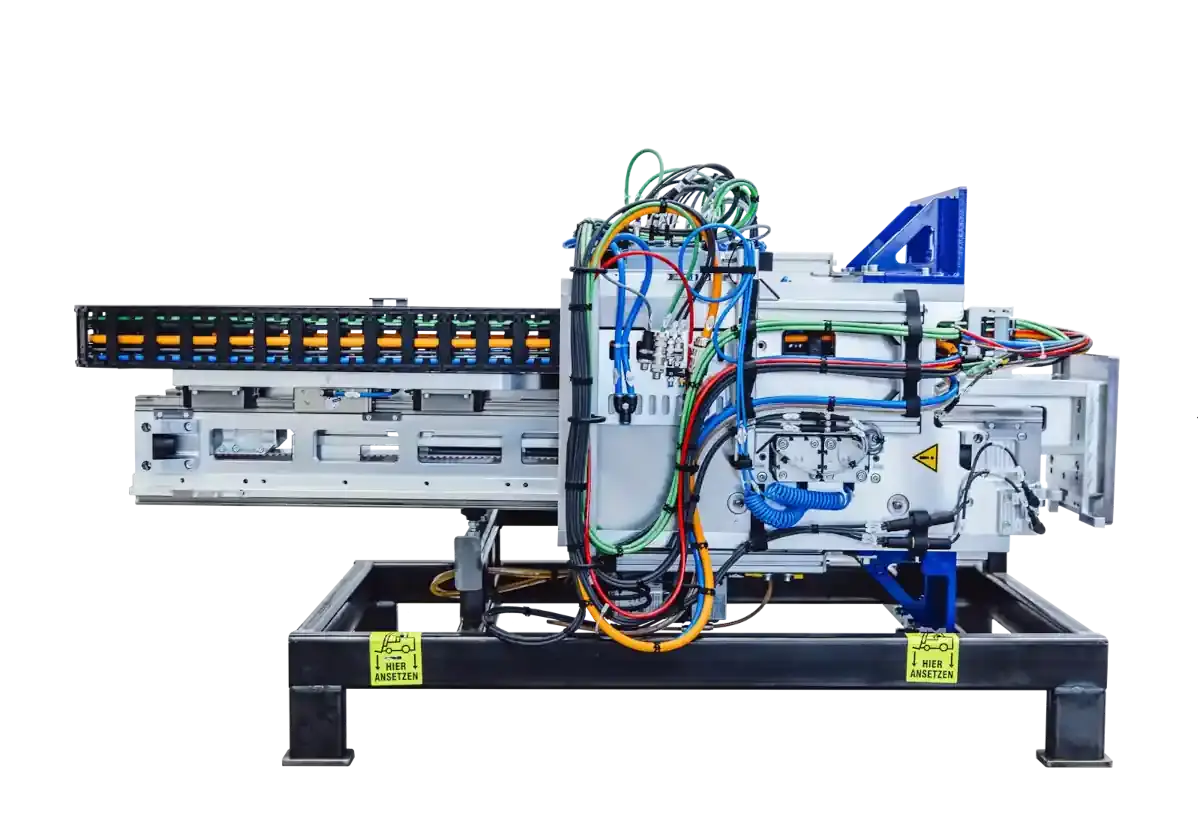

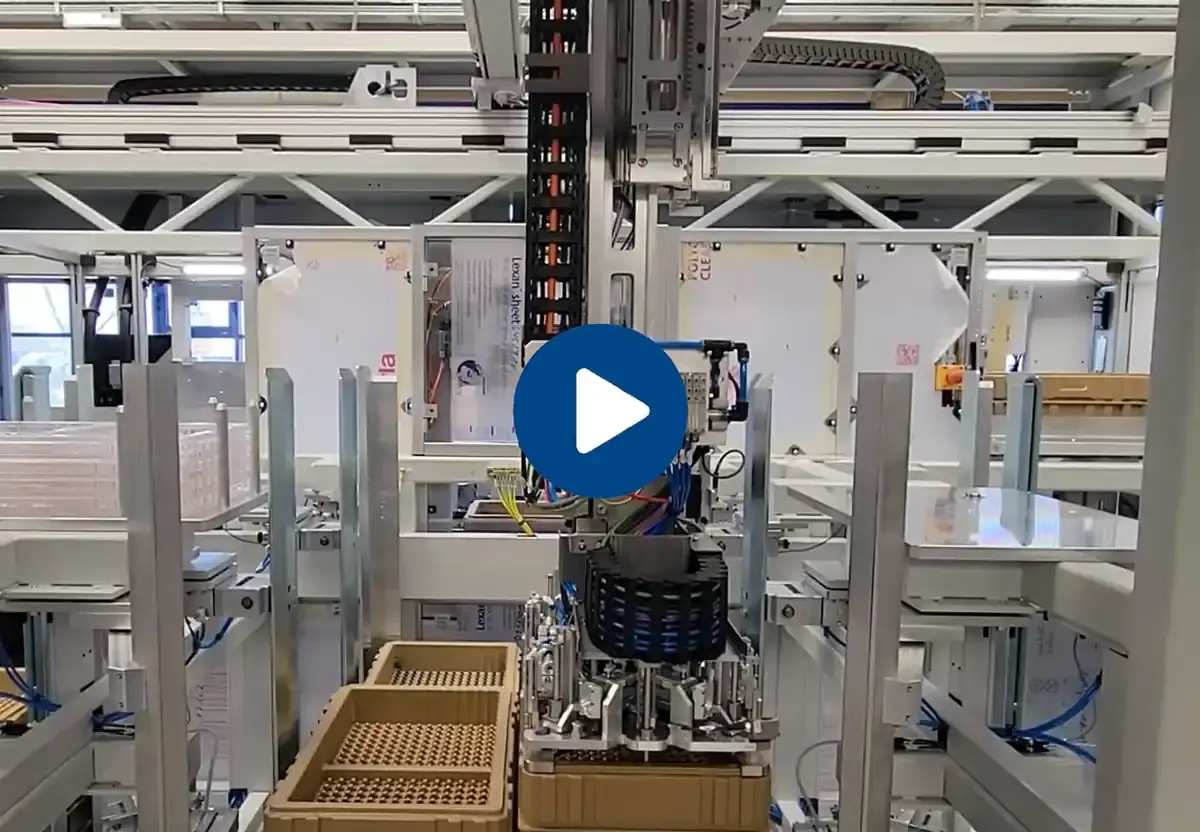

Telescopic Z-axis – Developed in-house for compact, high-precision deigns

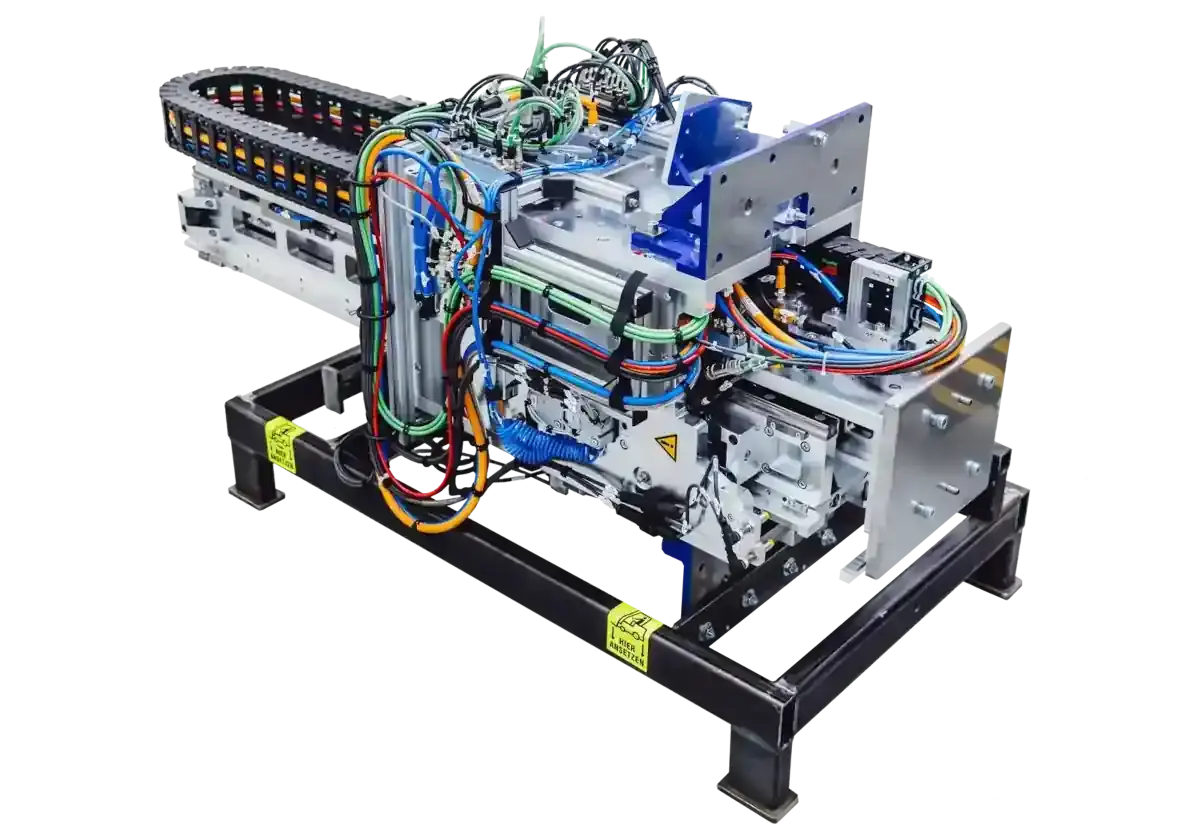

Our telescopic Z-axis was developed for applications where standard solutions are not enough: precise, dynamic and individually adjustable. The two-stage drive comprised of toothed belt and gear rack enables long strokes with a minimal installation height and high rigidity. The modular concept offers maximum flexibility for specific client requirements.
Advantages & Technology
The axis achieves a 40% reduction in installation height, with low noise and maintenance requirements, high repeat accuracy and various available sizes. With strokes of up to 2,000 mm, it can bear a load of 40–60 kg, operates at up to 1.5 m/s and delivers repeat accuracy of ±0.5 mm.
Electrical equipment & options

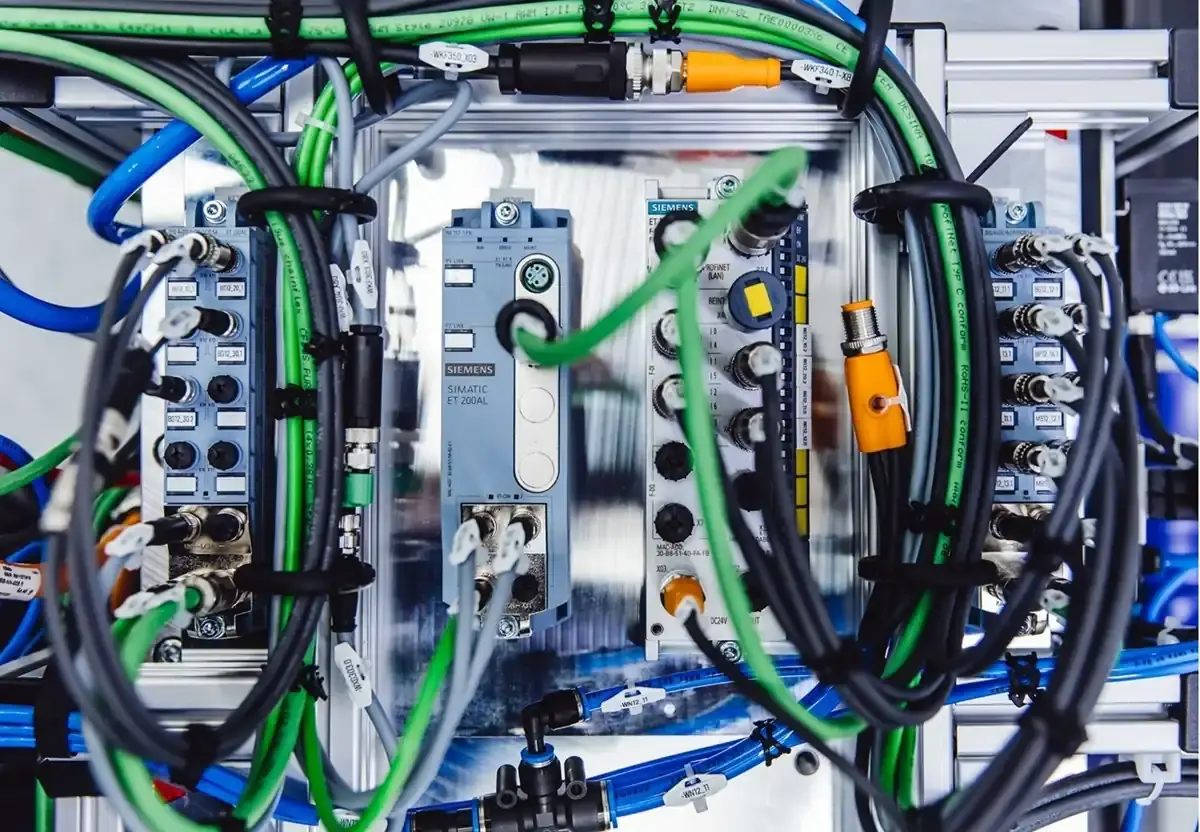

Delivery includes a servo drive according to customer specifications, freely selectable installation levels, Profinet interfaces as well as CE and UL conformity, along with integrated fall protection. Extensions such as swivel units or replaceable modules for grippers, joining or assembly tools can be integrated easily.
Typical applications
Typical applications include palletising trays, containers and panels, automated loading of processing and machining centres as well as various assembly and joining tasks.

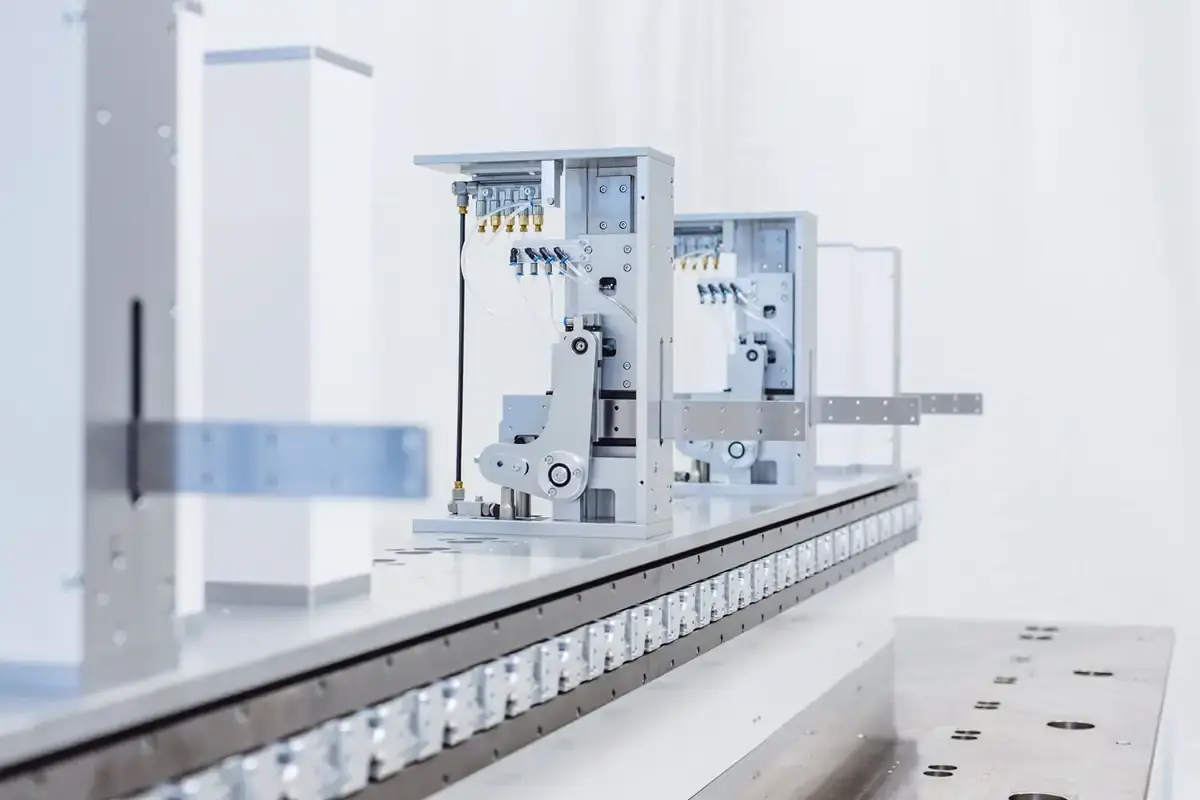

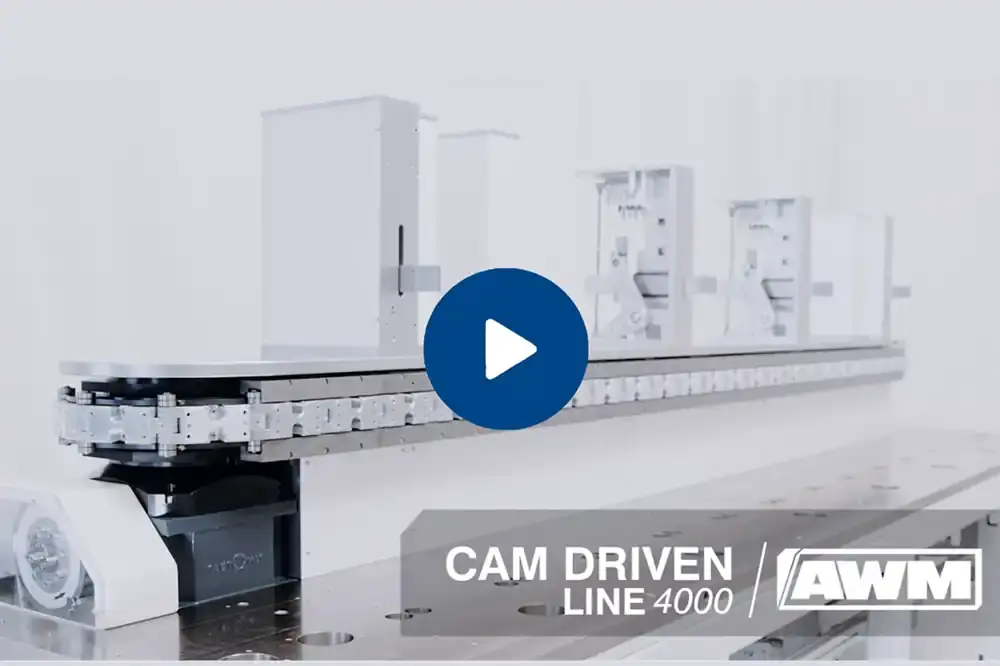

Cam-controlled platform – developed in-house for optimal performance
Increase cycle times – achieve success in 80 cycles
The AWM Cam-Driven Line (CDL) is an ideal solution for highly dynamic assembly processes, offering optimal flexibility while taking up little space. Three platform sizes are available with 16, 24 or 32 stations depending on the requirements – a perfect variety for challenging assembly, testing or joining tasks.
The linear machine platform delivers excellent accessibility, a sophisticated protective cladding system with integrated rooftop switch cabinet and a range of combinable handling modules. The extensive AWM assembly kit makes it possible to configure Pick & Place units as well as assembly or testing technology to suit the precise requirements.

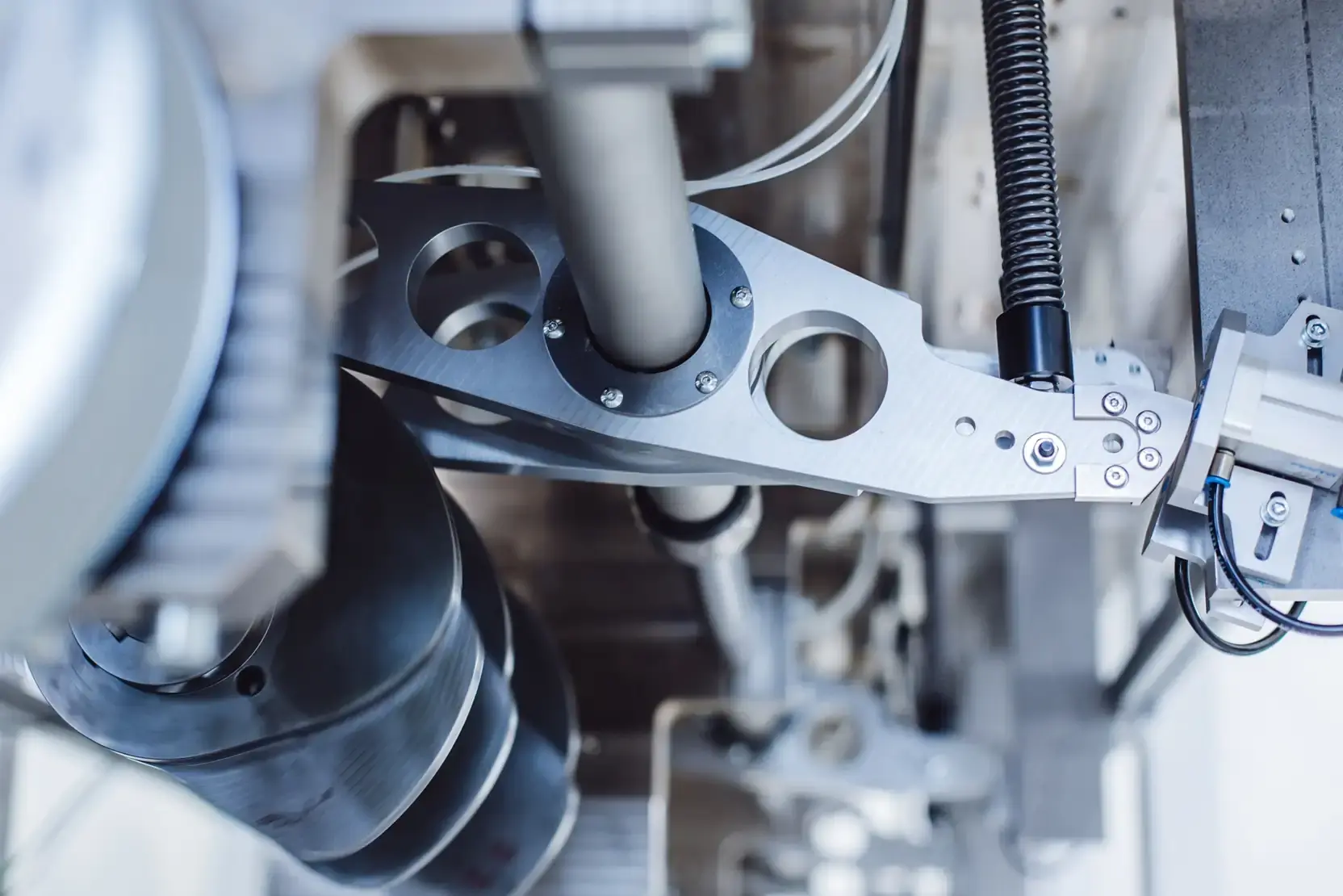

How the CDL works

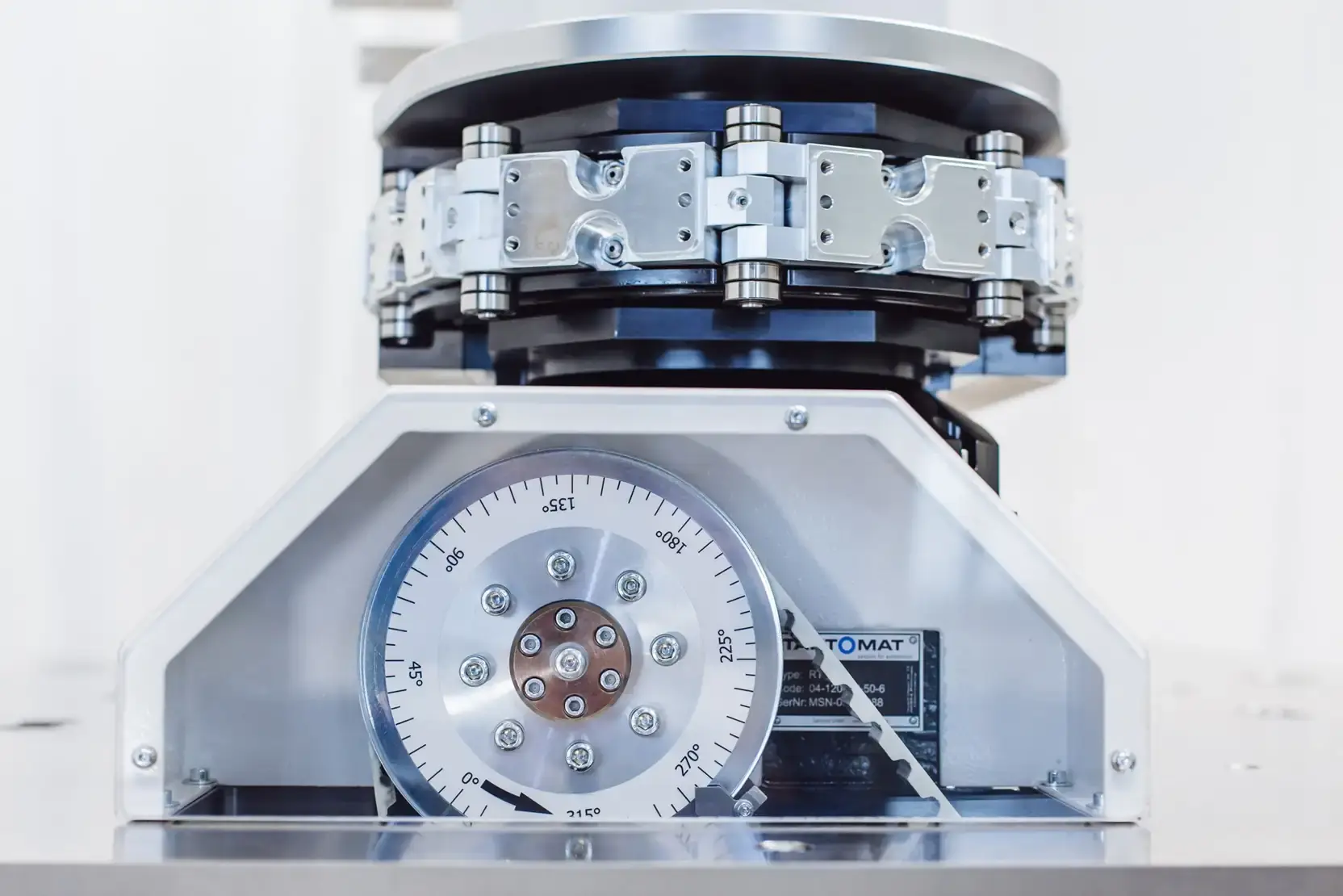

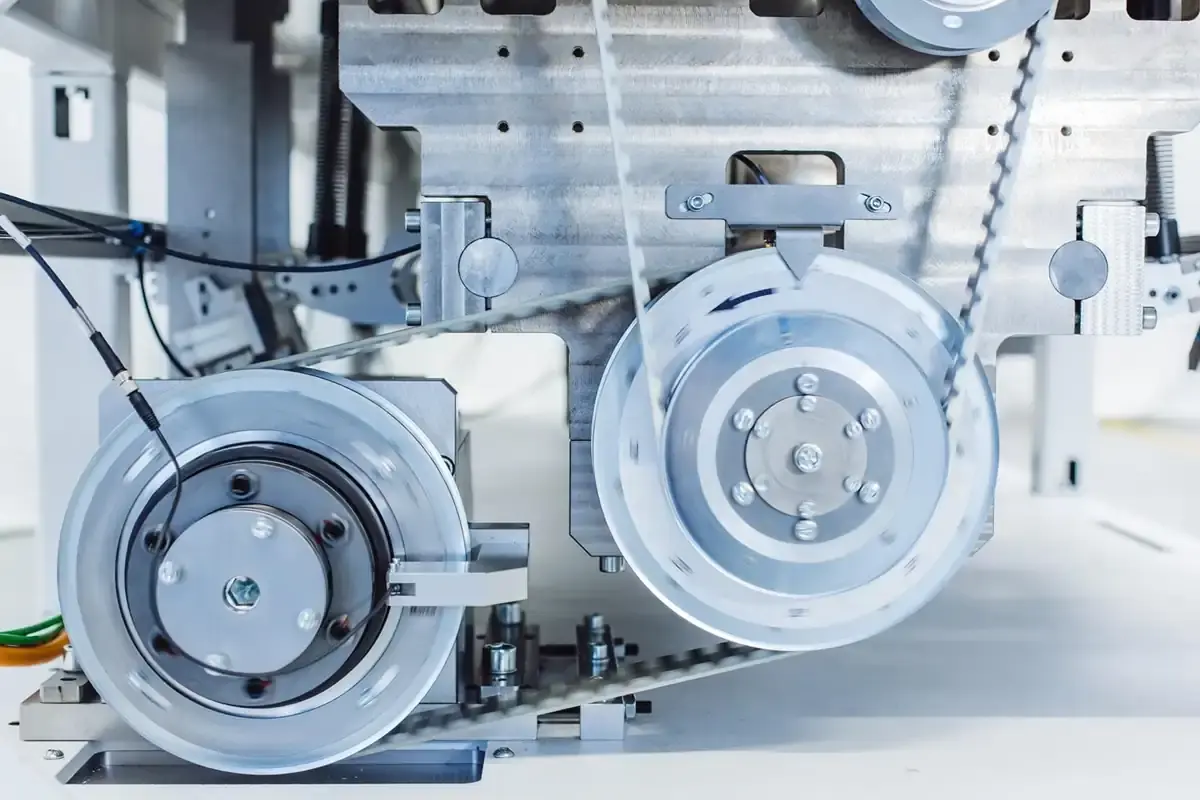

A central drive using a toothed belt moves both the horizontal main shaft and the stepped motion gear. This propels the cycle chain, which operates at a preferred switching angle of 120° and provides four defined stopping positions. Below the table surface, cam discs control the movement profile of the stations. The linear and vertical movements are implemented precisely with cam rollers and bell cranks, relying on tension springs or pneumatic support depending on the design.
The advantages for you: maximum cycle performance, high process stability and an assembly-optimised platform that can be adapted to your exact production requirements.
New possibility of hybrid machines – integration also of electric or pneumatic driven stations in between the cam-driven stations, with reliable synchronisation. This provides a much higher flexibility, e.g. to produce different product variants, than would be possible with cam-driven stations only.
1
Analysis, concept & distribution
Objectives are clarified together with the customer and a solution concept is developed for technical equipment.
2
Design
The equipment design concept is optimised and implemented in construction using modern CAD workplaces.
3
Control technology
Our specialists design and implement complex control projects in house.
4
Manufacture
The latest CNC machines enable highly precise manufacturing at optimal costs.
5
Assembly
Our mechanics assemble the equipment working as a team
6
Testing and optimization
Before we show customers our machines and equipment, they are extensively tested and optimised.
7
Commissioning
Our commissioning team carries out a test run on site and hands over the equipment to the customer.
8
Training
Your employees are instructed on site regarding the function, operation and maintenance of the equipment based on our documentation.
9
Service
We conduct service and maintenance work quickly and reliably, on site, whenever you need us.
AWM GmbH is your partner for intelligent production solutions. We offer powerful automatic assembly, testing, robotic and injection moulding machines for a wide range of industries. Thanks to our experience in integration, we combine established, standardised processes into an efficient overall system for reliable and fast production with a consistently high level of quality. We rely on our decades of in-house expertise and strategically expand our know-how by consulting selected external specialists. This means you will always obtain the precise solution that optimally aligns with your requirements.
Our processes
Measuring/testing
Force/displacement, acceleration, weight, noise, magnetism, tension, current, resistance, density (air, helium), flow rate, etc.
Dosing
Dosing of granulate, greases, oils, adhesive and sealing compounds, fluids, etc.
Welding
Laser welding, ultrasound welding, mirror welding of plastics, resistance welding, etc.
Labeling
Labeling, laser marking, etc.
Heating / cooling
Heating, cooling, etc.
Separating / Cutting
Punching, stripping, etc.
Image processing
Preprocessing, measurement, feature extraction, quality control, position determination, classification, etc.
Testing
Presence, color, electrical, etc.
Sorting/feeding
Spiral conveyor, linear conveyor, sidewall conveyor, steep incline conveyor, Pick & Place, etc.
Stacking
Bipolar plates, etc.
Connecting
Rolling, tumbling, riveting, flanging, pressing, crimping, bolting, gluing, etc.
Packaging
Packing, sealing, shrink wrap, etc.

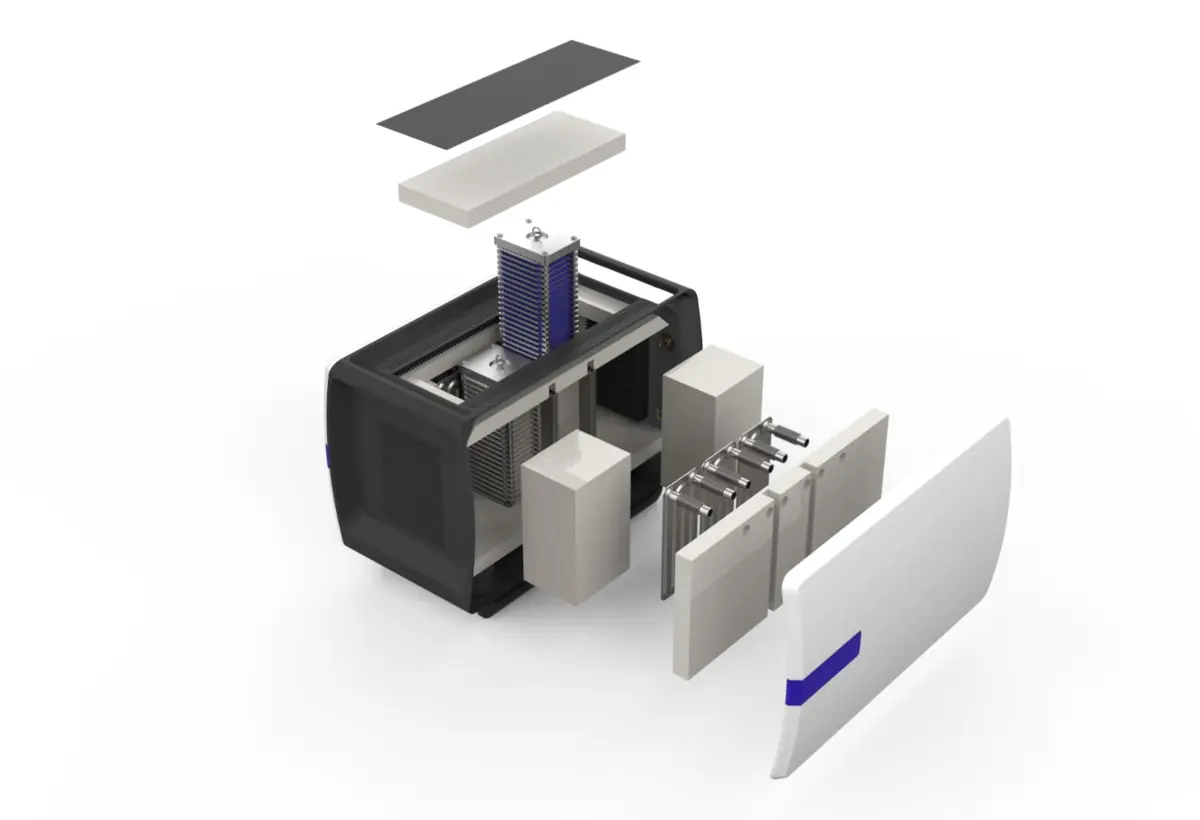

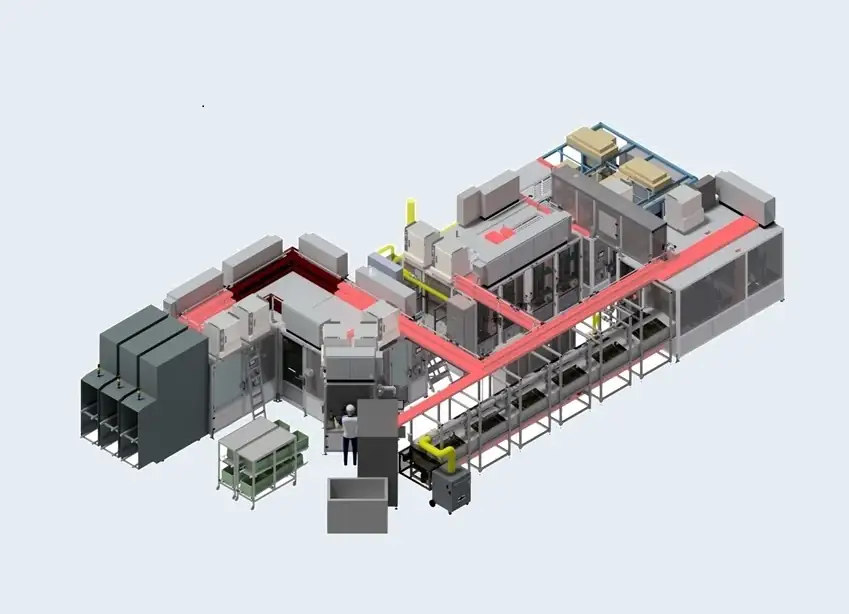

Cases
AWM GmbH develops solutions that are precisely coordinated to your requirements, combining technical performance with economic efficiency. Our references demonstrate how we transform complex challenges into powerful, established system solutions. An overview of typical applications and selected use cases is presented below.
Customers
Do you have any questions?
We will resolve your issue.
The quality and reliability of our special equipment is primarily determined by the quality of our mechanical components. We are provide solutions for assembly and testing systems as well as sophisticated machines for plastic/metal-oriented parts and mechatronic systems up to a part weight of 10 kg.
